System overviewEngineered around your production requirement
The Standard Oscillation System is an essential auxiliary mechanism for electroplating and surface treatment processes where consistent solution contact and uniform coating quality are required. It generates controlled reciprocating movement of workpieces within the treatment bath, helping maintain effective chemical exchange at the component surface.

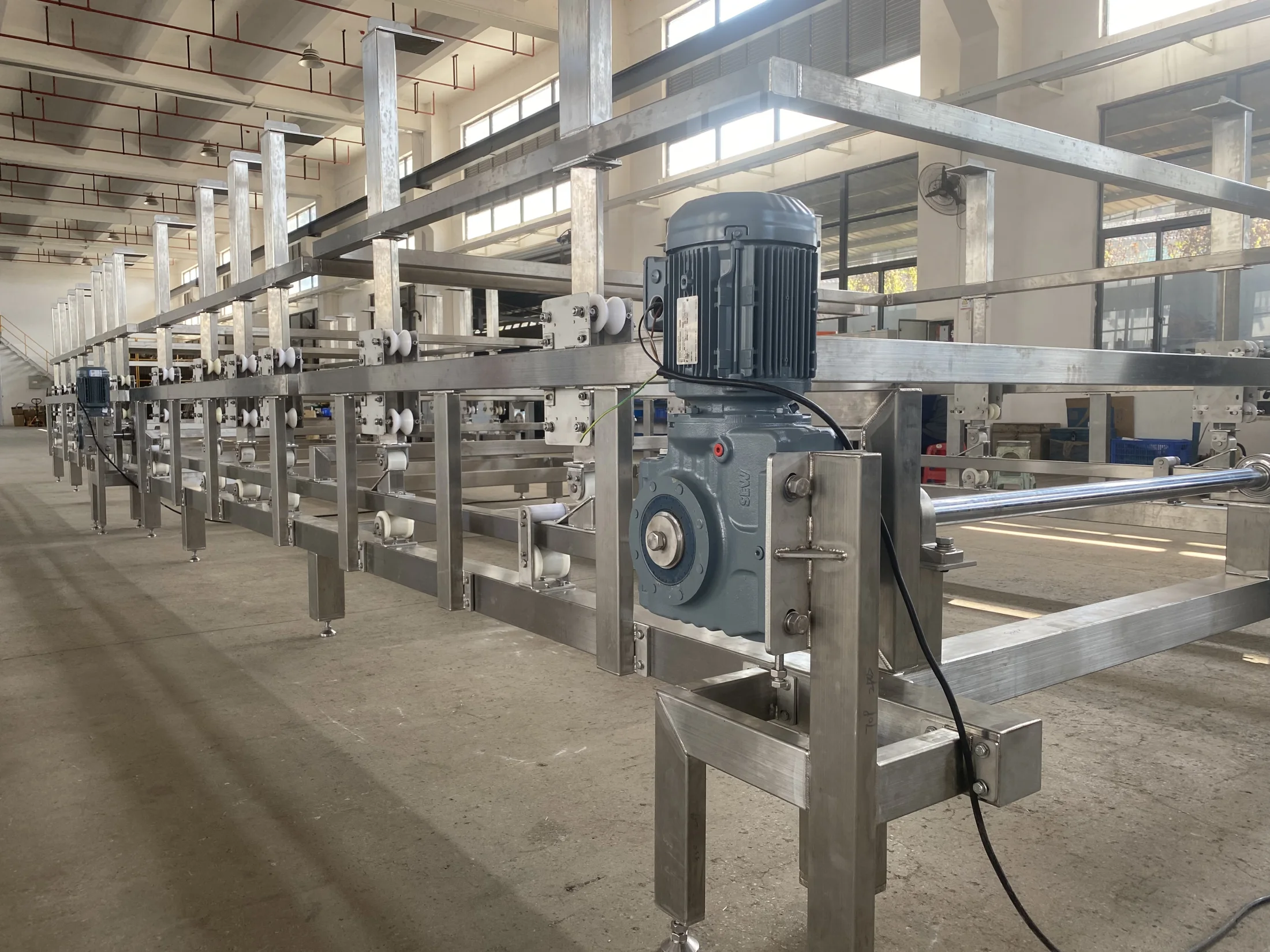

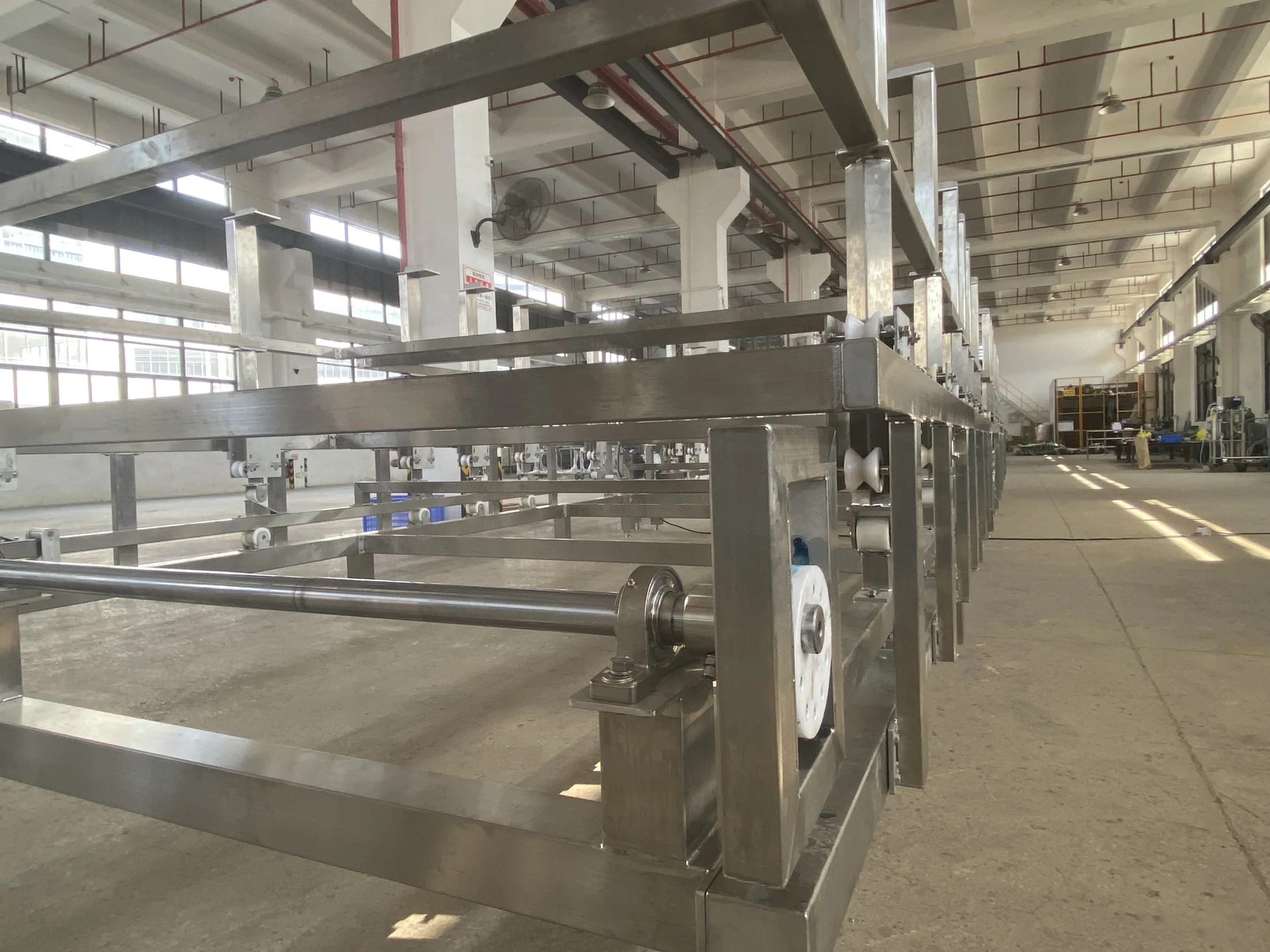

The system typically consists of a motor-driven transmission mechanism, oscillating frame, flybar support structure, and adjustable movement controls. Depending on the application, horizontal or vertical oscillation configurations can be selected to accommodate different tank dimensions, rack arrangements, and workpiece geometries.
Special attention is given to movement stability, stroke length, oscillation frequency, and load distribution. These parameters are configured according to plating bath characteristics, component dimensions, coating requirements, and production conditions to minimize excessive vibration while maintaining effective solution movement.
Mechanical components are designed for continuous industrial operation, with corrosion-resistant materials and protective arrangements suitable for chemical processing environments. The system can operate independently or be integrated with PLC and HMI controls for coordinated operation with plating cycles and automated transfer equipment.
From mechanical design and equipment fabrication to installation and operational testing, the system provides a practical solution for improving plating consistency, reducing surface defects, and supporting stable production performance across a wide range of industrial surface treatment applications.
ApplicationsWhere this system fits
Standard Oscillation Systems are designed for electroplating and surface treatment processes requiring controlled workpiece movement, improved solution exchange, and consistent surface finishing quality.
Electroplating Lines: Provide controlled rack movement during nickel, copper, zinc, chromium, and other plating processes to improve coating uniformity.
Precision Component Plating: Support consistent solution contact around complex geometries, recessed areas, and intricate metal components.
Rack Plating Lines: Enable horizontal or vertical oscillation of workpiece racks to reduce air bubble accumulation and improve plating consistency.
Electroless Plating Lines: Enhance solution exchange around component surfaces to support uniform chemical deposition.
Chemical Cleaning & Pretreatment Lines: Improve cleaning effectiveness during degreasing, activation, pickling, and chemical treatment processes.
PCB & Electronic Component Processing: Support controlled movement of delicate components where stable solution contact and precise surface treatment are required.
Automotive & Aerospace Components: Assist in achieving consistent surface finishes on precision-engineered parts with demanding coating specifications.
Existing Plating Line Upgrades: Integrate oscillation mechanisms into existing tanks to improve process performance without replacing the entire production line.
