System overviewEngineered around your production requirement
The Zinc-Nickel-Silver Pilot Plating Line provides a controlled and flexible platform for developing, testing, and optimizing electroplating processes before implementation in full-scale manufacturing. It is particularly suitable for research facilities, surface treatment manufacturers, and industrial laboratories evaluating new coating formulations, substrate materials, and production parameters.

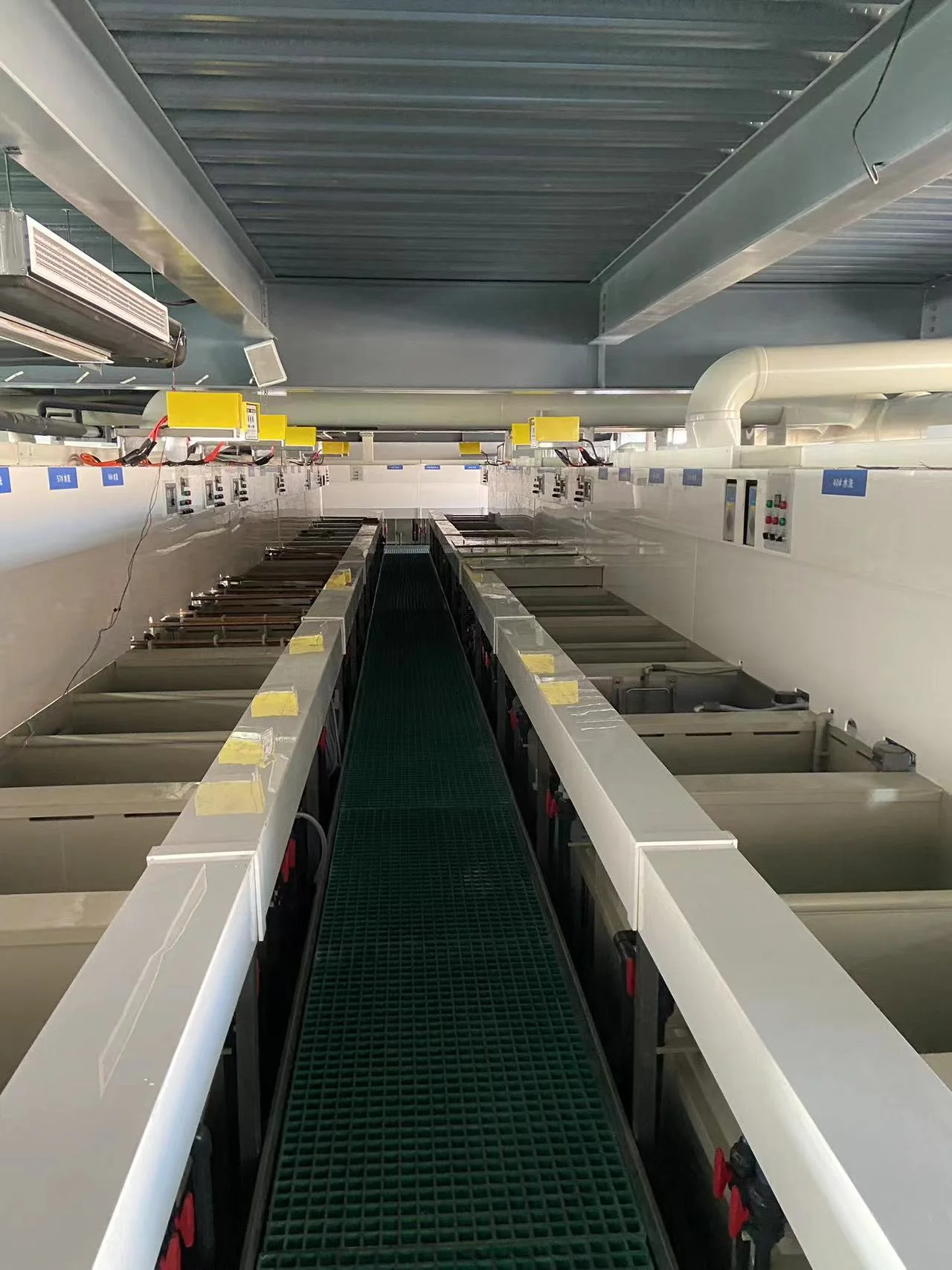

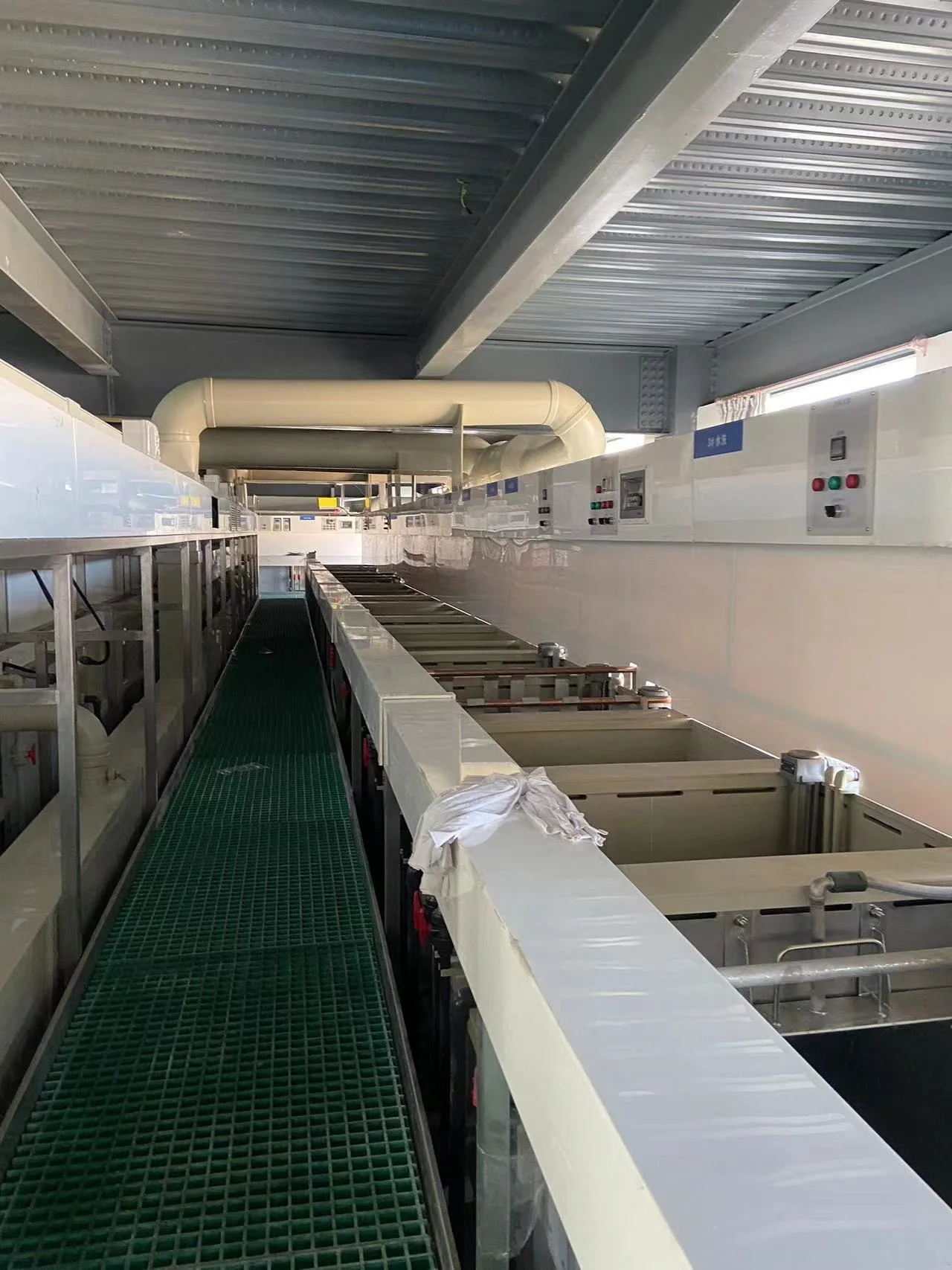

The system can incorporate dedicated processing tanks for surface preparation, activation, zinc, nickel, and silver plating trials, followed by rinsing and post-treatment stages. Individual tank arrangements allow different chemical processes to be evaluated independently, helping engineers investigate coating adhesion, thickness distribution, surface appearance, corrosion resistance, and other performance characteristics.

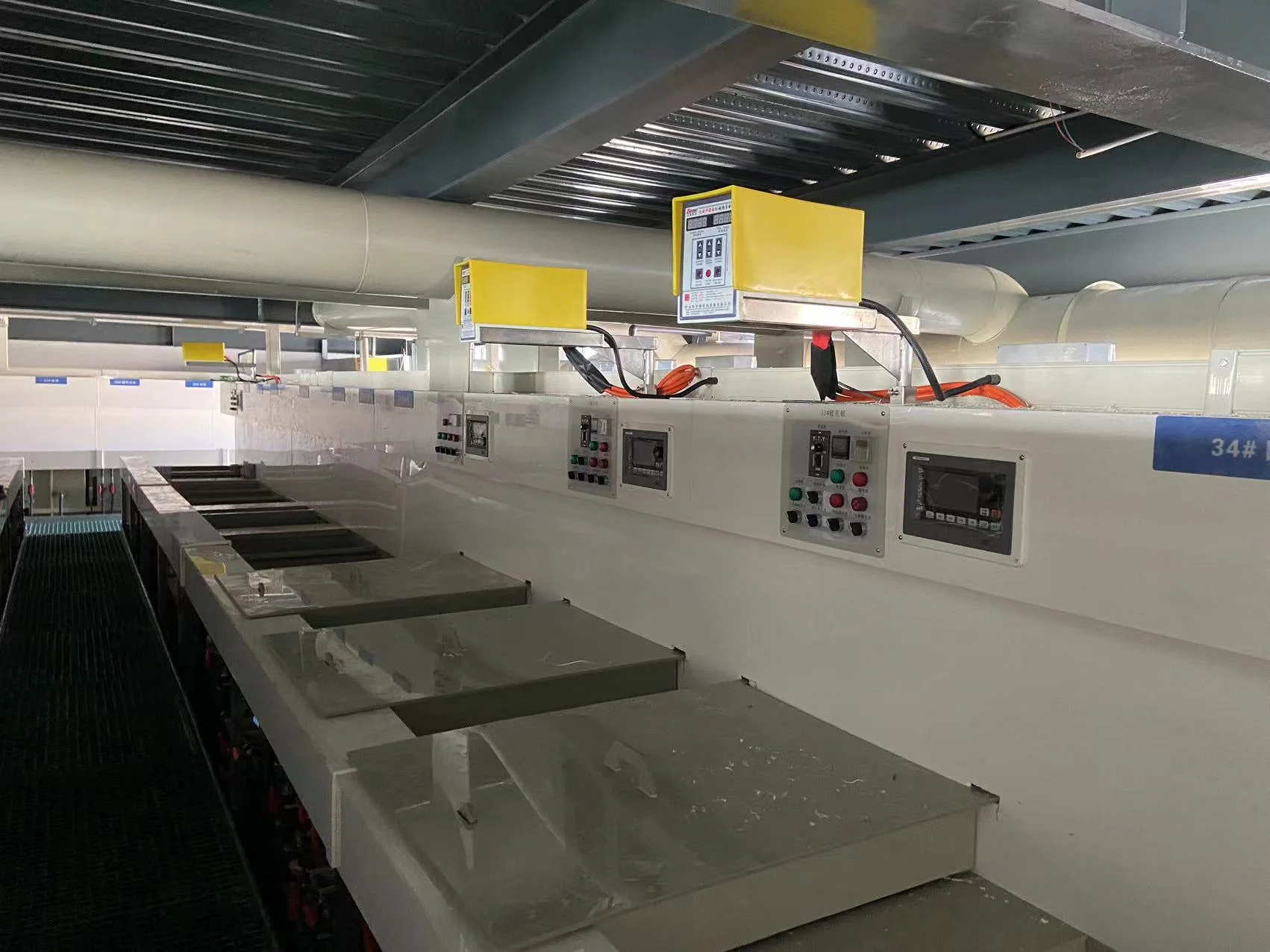

Precise control of electrical and chemical parameters is essential for reliable experimental results. Programmable rectifiers, temperature controllers, filtration systems, and adjustable process timers enable systematic evaluation of current density, voltage, bath temperature, treatment duration, and deposition conditions. Each processing stage can be configured according to specific research objectives and coating requirements.

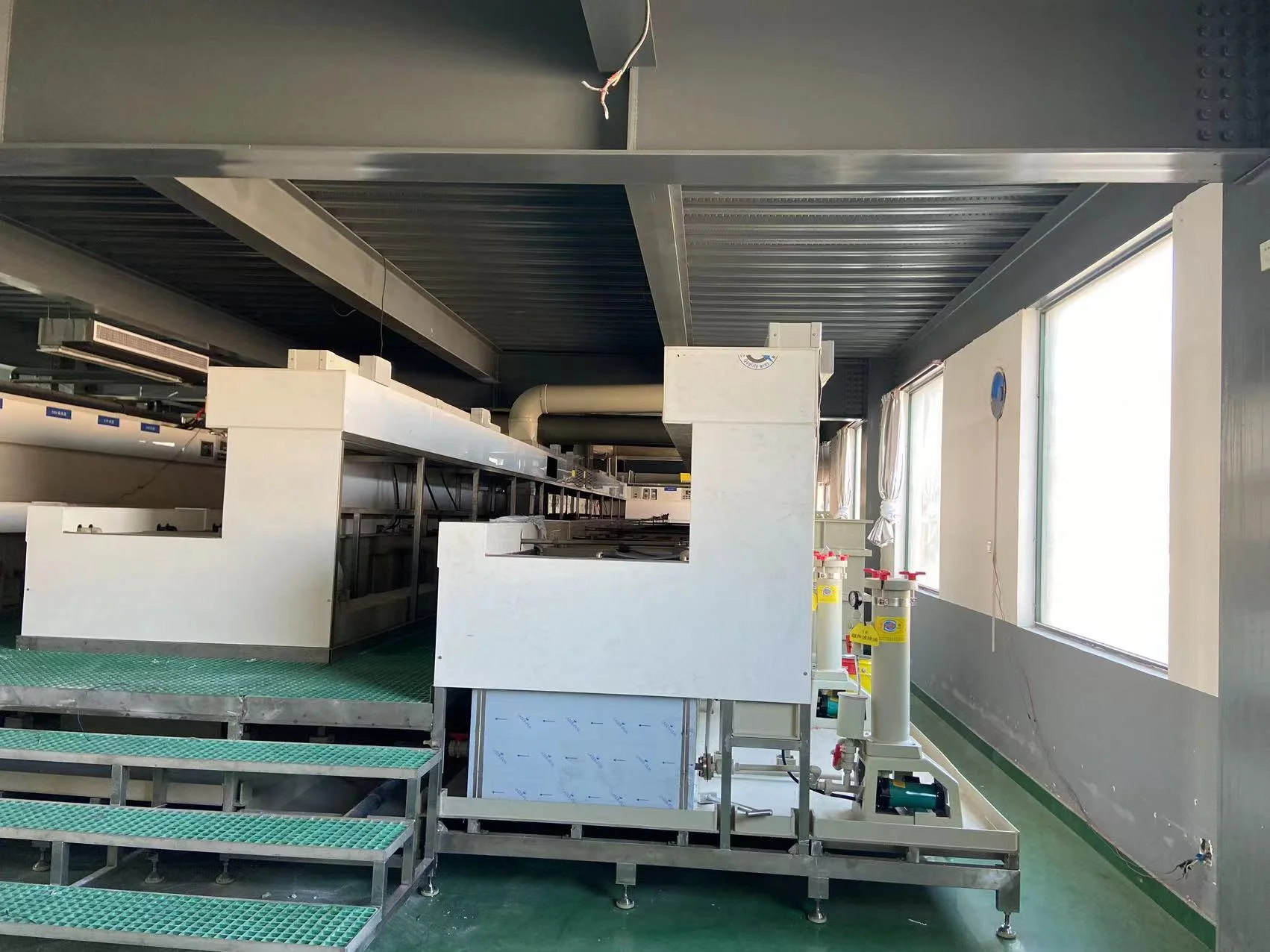

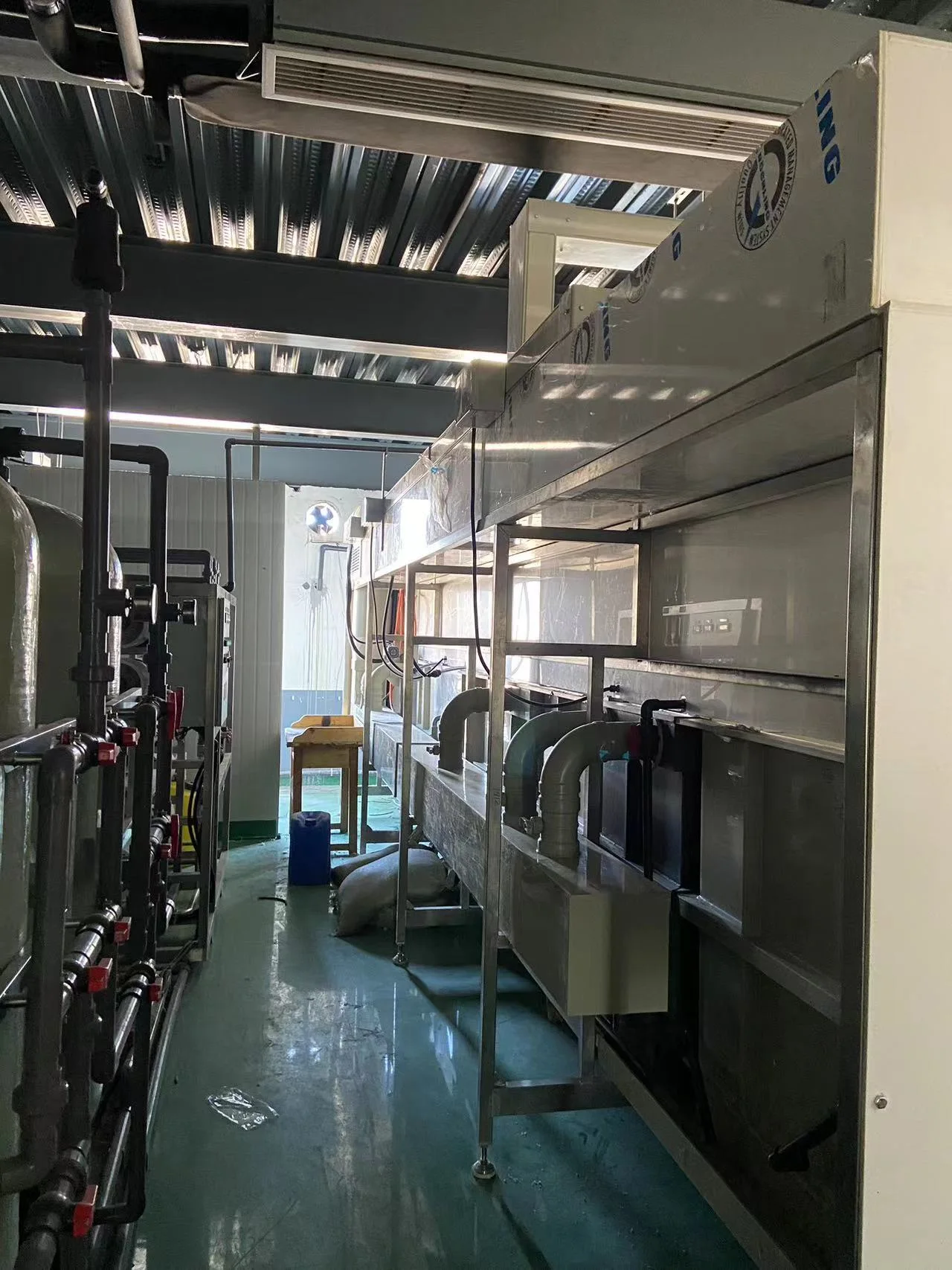

The equipment is designed with chemical-resistant tanks, suitable ventilation, safe chemical handling arrangements, and accessible maintenance areas. Particular attention is given to preventing cross-contamination between plating solutions, providing appropriate wastewater segregation, and maintaining stable operating conditions throughout repeated testing cycles.
Optional PLC, HMI, and data monitoring systems can support recipe management, automatic parameter recording, alarm monitoring, and historical process analysis. These functions help engineers compare experimental results, identify suitable operating conditions, and establish repeatable procedures for subsequent production trials.
With a modular equipment arrangement and adaptable process configuration, the pilot line supports continuous improvement of plating technologies, validation of coating specifications, and the development of scalable manufacturing processes while reducing the risks and costs associated with direct full-scale production trials.
ApplicationsWhere this system fits
Zinc-Nickel-Silver Pilot Plating Lines are suitable for research, process development, coating evaluation, and small-scale production trials requiring flexible operating conditions and precise control of electroplating parameters.
Electroplating Research & Development: Evaluate new plating formulations, operating parameters, and deposition techniques before industrial-scale implementation.
Zinc & Zinc Alloy Plating: Conduct coating trials to optimize corrosion resistance, coating thickness, surface appearance, and plating efficiency.
Nickel Electroplating: Develop and test nickel coatings for decorative finishes, wear resistance, corrosion protection, and functional applications.
Silver Electroplating: Evaluate silver deposition processes for electrical contacts, connectors, electronic components, and precision metal parts.
Automotive & Industrial Components: Test protective and functional coatings on fasteners, mechanical components, and precision-engineered parts.
Electronics & Electrical Components: Develop conductive coatings for terminals, connectors, electrical contacts, and specialized electronic assemblies.
Chemical Formulation Testing: Assess plating bath performance, additive compatibility, chemical stability, and operating conditions under controlled environments.
Coating Quality & Performance Evaluation: Conduct experiments to assess coating adhesion, thickness uniformity, hardness, corrosion resistance, and surface defects.
Pilot-Scale Production: Validate processing conditions and equipment performance before transferring developed plating processes to full-scale manufacturing.
Universities & Research Institutes: Support electrochemical research, surface engineering studies, experimental plating processes, and advanced coating development.
