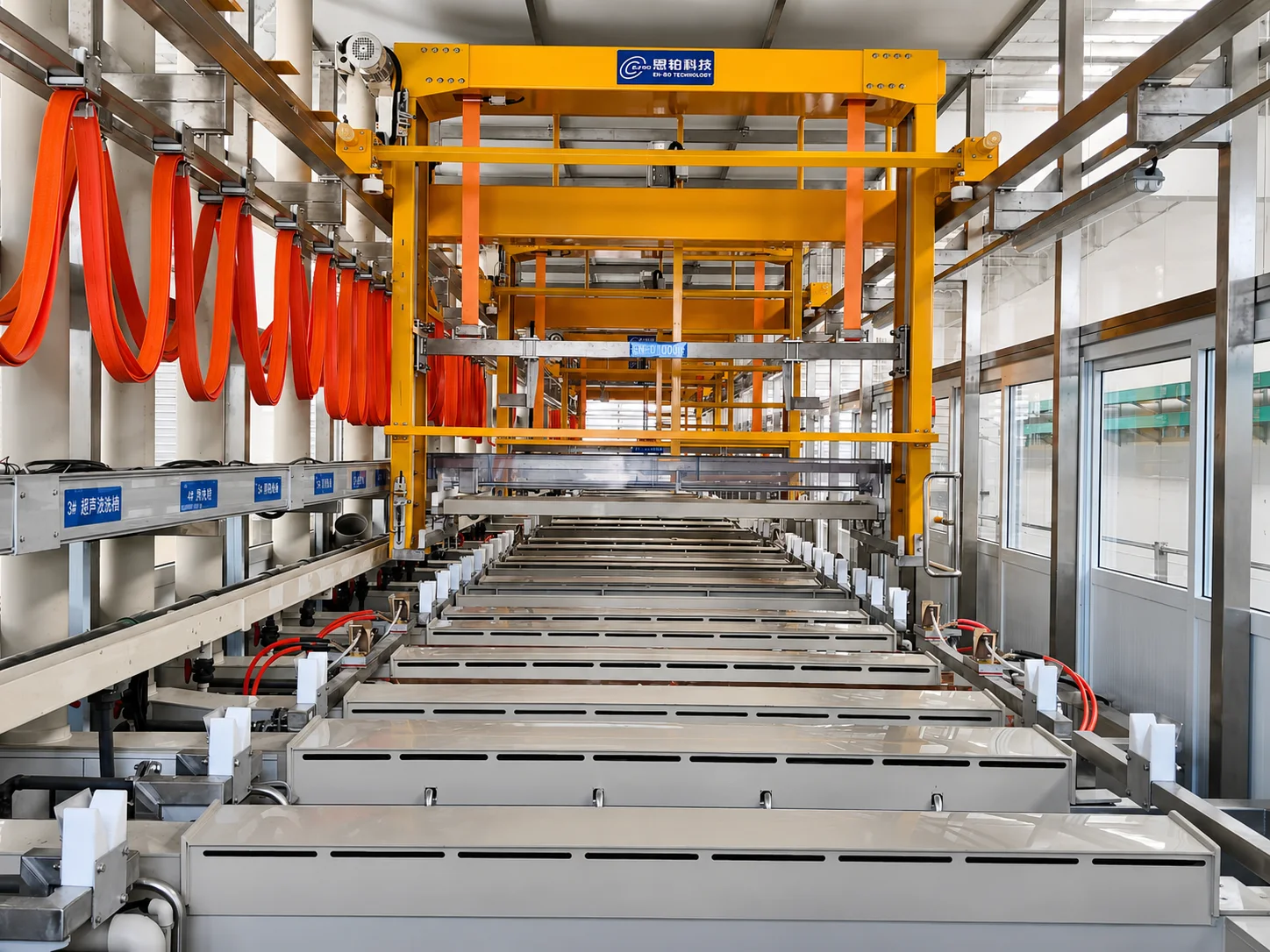

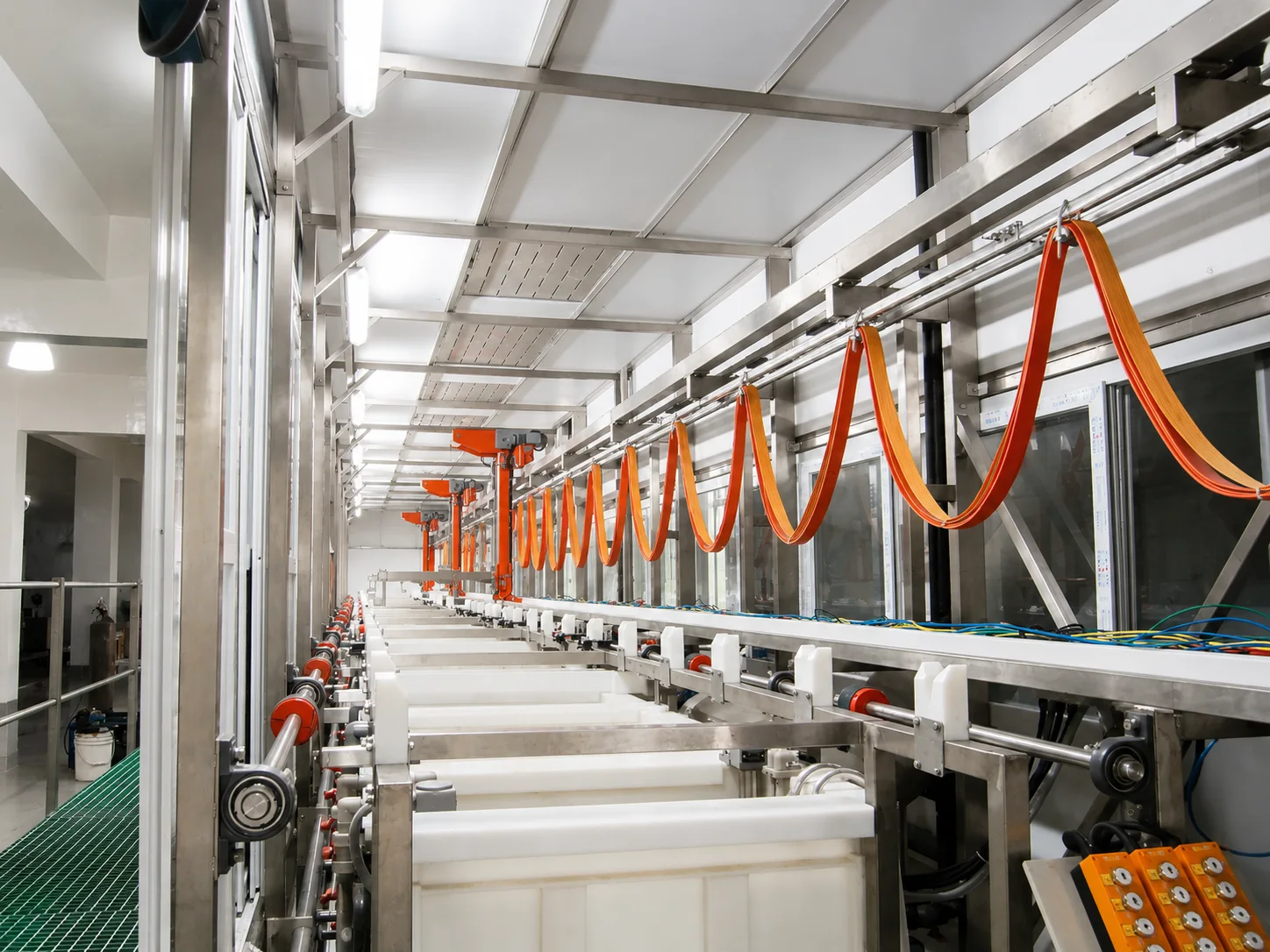

PCB Plating Line configured for production capacity, process sequence, rack, jig or product handling matched to part geometry, utilities, safety and traceability requirements.
Final specification is developed after reviewing the product, process, capacity, plant layout, utilities and applicable standards.
PCB plating lines are designed for controlled metal deposition on printed circuit boards to achieve reliable conductivity, through-hole coverage and consistent surface quality.
ES-PRO provides customized PCB plating systems integrating pre-treatment, activation, electroless and electrolytic plating, rinsing, filtration, rectifiers and process control. Each line is configured according to board type, plating thickness, production capacity and required electrical performance.
The displayed flow is an engineering reference. The final sequence, chemistry, dwell time and control points are confirmed for the customer’s process.
PCB plating lines are widely used for circuit boards that require reliable conductive layers, uniform metal deposition and stable electrical performance.
Printed circuit boards (PCB)
Multilayer circuit boards
Through-hole plated boards
High-density interconnect (HDI) boards
Electronic control boards
Communication and telecom boards
Automotive electronics
Industrial and consumer electronic products
