Reel-to-Reel Plating Line configured for production capacity, process sequence, continuous material handling and stable tension, utilities, safety and traceability requirements.
Final specification is developed after reviewing the product, process, capacity, plant layout, utilities and applicable standards.

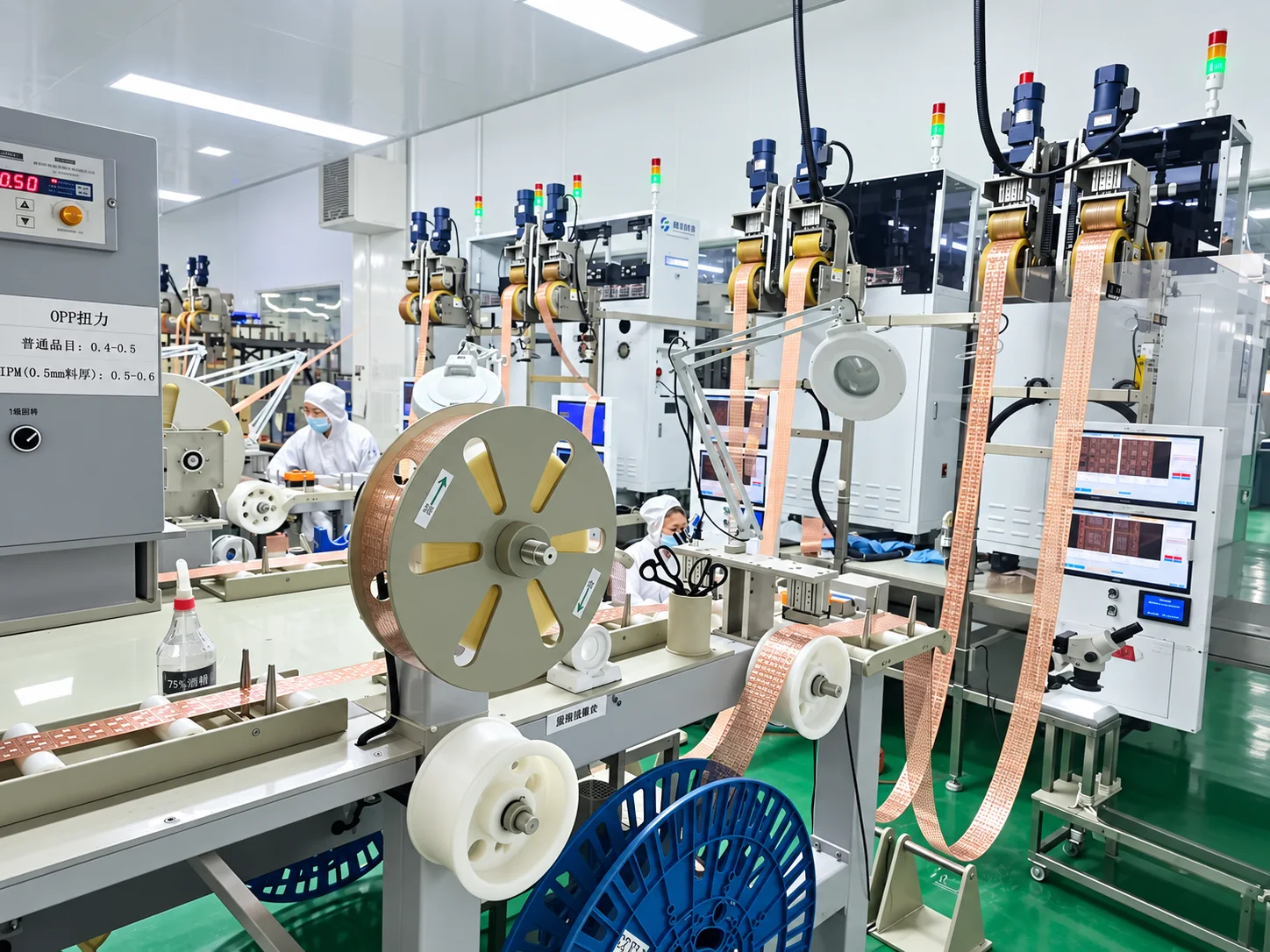

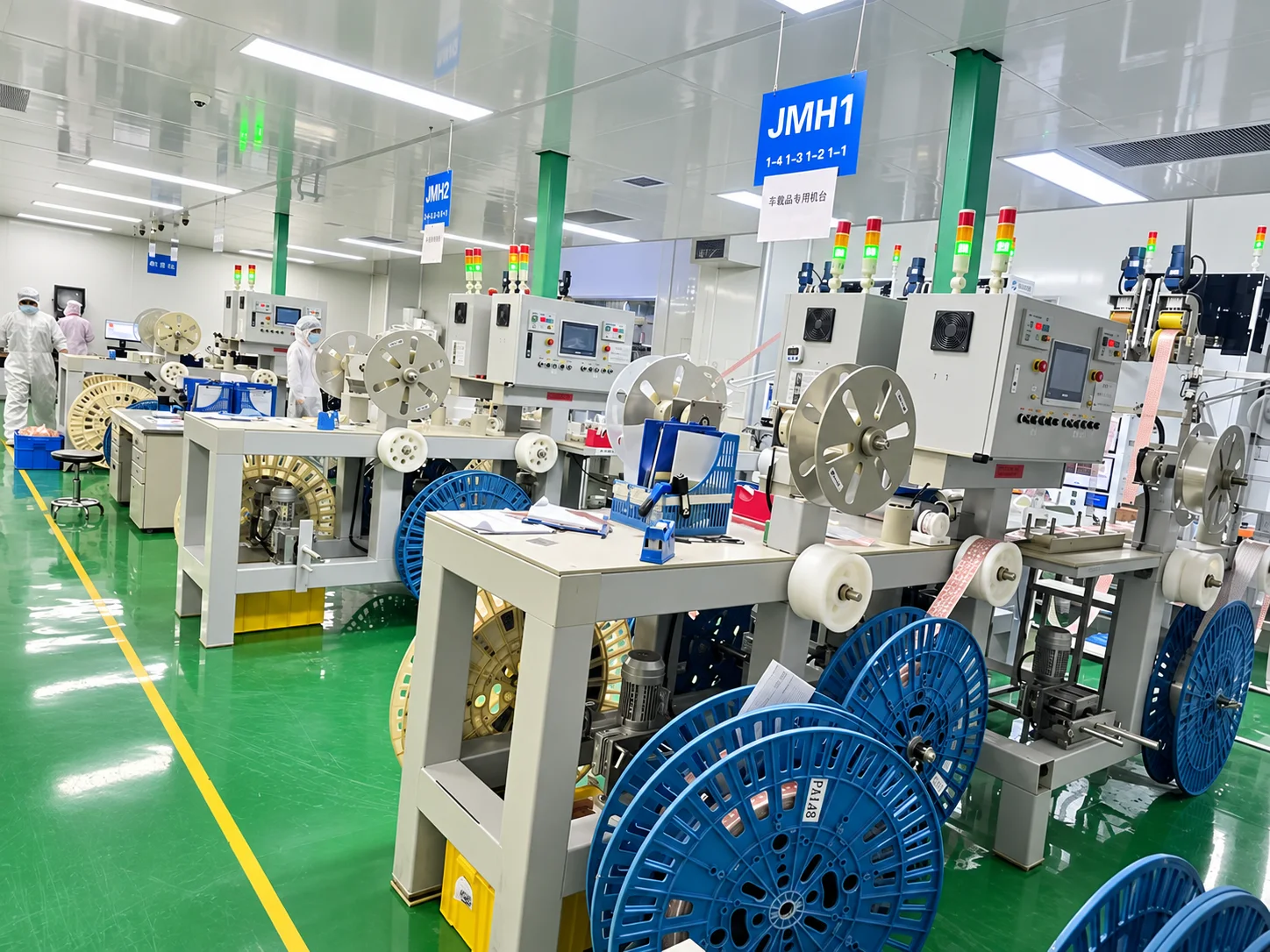

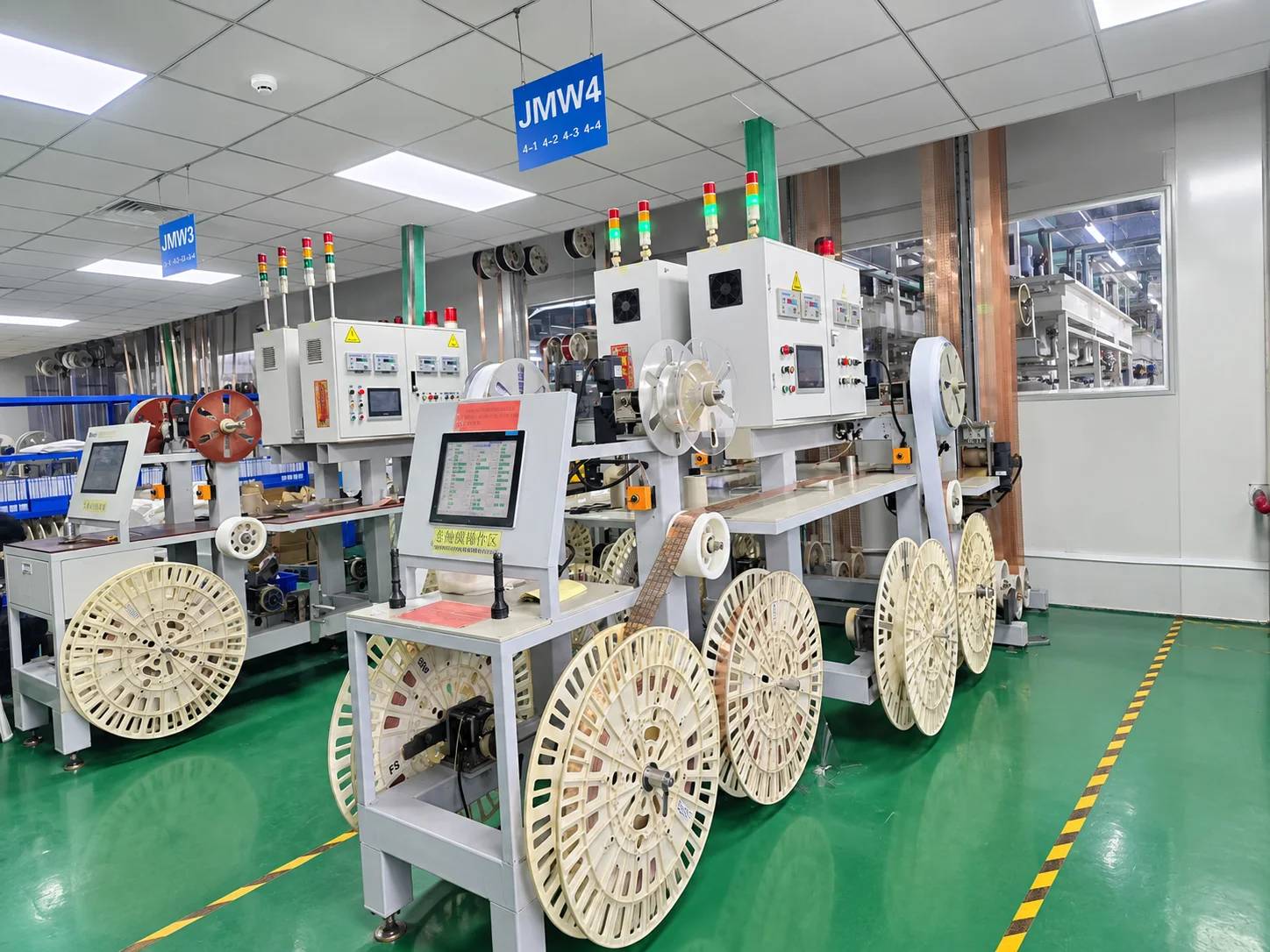

Reel-to-reel plating lines are designed for continuous electroplating of strip materials, terminals, connectors and other high-volume components supplied in coil form.
ES-PRO provides customized systems integrating continuous material transport, pre-treatment, plating, rinsing, drying, rectifiers and process control. Each line is configured according to strip width, material thickness, plating area, coating specification and production speed to achieve stable and consistent deposition
The displayed flow is an engineering reference. The final sequence, chemistry, dwell time and control points are confirmed for the customer’s process.
Reel-to-reel plating lines are widely used for continuous strip and stamped products that require high-speed, consistent and selective metal deposition.
Electronic terminals and connectors
Lead frames
Copper and alloy strips
Contact materials
Automotive electrical components
Precision stamped parts
Continuous metal strips
Components requiring selective or continuous plating
.
